Kit - HyperXtender PE Ethernet Extender with PoE Remote Unit- NV-202PEKIT

Kit - HyperXtender PE Ethernet Extender with PoE Remote Unit- NV-202PEKIT

Netsys

Price $412.50 $371.25 Online Sales Price

  • Product Details

Description

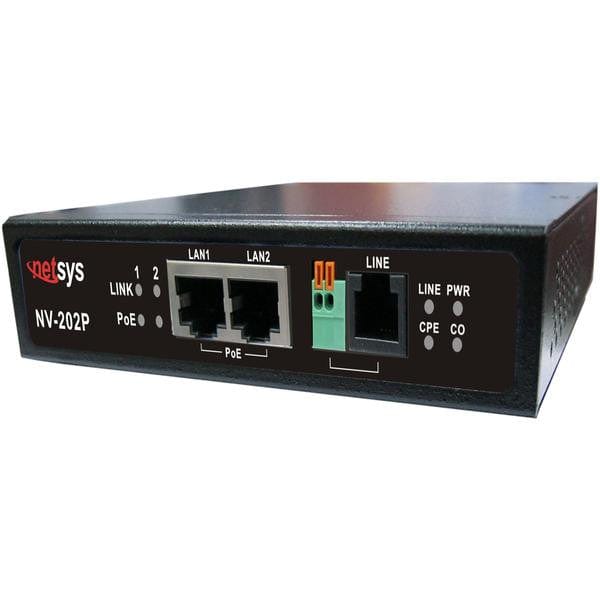

The Netsys HyperXtender PE Ethernet Extender Kit with PoE (NV-202PEKIT) provides a cost effective point-to-point solution for long range broadband applications, delivering high-speed data over long distances while also providing power through the NV-202PE Remote Unit's dual Power over Ethernet-injected 10/100Mbps Ethernet ports. The NV-202PEKIT comes with everything you need (one NV-202E Local Unit and one NV-202PE Remote Unit) for a point-to-point, plug and play application where the remote network devices require PoE, and features auto-configuring speeds up to 100Mbps symmetrical (up to 1,000 feet, with speeds dropping off asymmetrically from there), automatically optimized based on the quality of the line and the distance with a maximum distance of 10,000' (3 km) over existing twisted-pair phone line or network cable. The NV-202PE Remote Unit's dual 10/100Mbps Ethernet ports feature built-in PoE injectors, providing the ability to power PoE ready network devices directly from the NV-202PE. NOTE: The NV-202PE Remote Unit does require its own power source (48V DC) and is provided in the NV-202PEKIT.

The Netsys NV-202PEKIT comes ready to plug and play out of the box (no configuration required) for distances up to 10,000 feet (3 km) at an auto-configured bandwidth of 5.04Mbps downstream and 1.48Mbps upstream, or line speeds up to 100Mbps symmetrical at distances up to 1,000 feet (0.3 km), which is more than perfect for most applications. The bandwidth usage is automatically optimized to achieve the best speeds possible based on the surrounding environment, and there is no configuration required. The Netsys NV-202PEKIT also features the ability to extend telephone (POTS/ISDN/PBX) service over the same 2 wires and utilizing external filters (sold separately). The Netsys NV-202PEKIT saves you time and money by utilizing existing phone line or network-grade cable, and requires only a single twisted pair (2 wires) to operate.

The Netsys HyperXtender PE Ethernet Extender Kit with PoE (NV-202PEKIT) provides a complete and cost-effective point-to-point solution for any location with network devices requiring PoE.

Speed vs. Distance (25K-30Mhz Spectrum - Low Band)

Features

  • NO CONFIGURATION REQUIRED
  • Plug and play, cost-effective Ethernet extension up to 10,000 feet (3 km) over existing phone lines or network cable
  • 2 X Auto-sensing 10/100 Mbps Ethernet port with Auto MDIX with built-in PoE injectors to provide power to network devices (NV-202PE Remote Unit)
  • 2 X Auto-sensing 10/100 Mbps Ethernet port with Auto MDIX (NV-202E Local Unit)
  • Ideal for remotely located IP Cameras or Wireless Access Points that require PoE
  • RJ-11/Terminal Block combo for Line port.
  • Supports high bandwidth up to 100Mbps symmetrical
  • Supports long reach mode up to 10,000 feet (3 km) with 24 gauge twisted-pair phone wire
  • Supports auto speed for Line port and Interleave mode selectable through CO side DIP switch
  • DIP switch for selecting CO and CPE modes
  • Supports long packet size up to 1536 bytes
  • Built-In Surge protection
  • Wall mountable
  • RoHS compliant
  • Compact desktop design
  • 802.3 Ethernet
  • 802.3u Fast Ethernet
  • 802.3x Flow Control (NV-202E)
  • 802.3af/802.3at Power over Ethernet (NV-202PE)
  • G993.2 VDSL2
  •

    Technical Specifications

    Product Kit Contents
    • 1 X HyperXtender PE Remote Unit with PoE (NV-202PE)
    • 1 X HyperXtender ER Local Unit (NV-202E)
    • 1 X User Manual CD
    • 8 X Plastic Feet
    • 2 X AC to DC Power Adapter
    • 1 X Straight-through Ethernet Cables
    • 1 X RJ-11 Cables
    Cable Connections
    • RJ-45 (Ethernet): Category 3~6 UTP/STP
    • RJ-11 (VDSL2): Twisted Pair phone wire
    LED Indicators
    • 1 x Power LED
    • 2 x Link/Active Status for Ethernet port
    • 1 x Link LED for VDSL2 port
    • 1 x CO Mode indicator LED
    • 1 x CPE Mode indicator LED
    • 2 x PoE Link Indicator LED (NV-202PE Only)
    VDSL2 Line Code
    • Discrete multitone (DMT) modulation
    VDSL2 Transmission Mode
    • Packet Transfer Mode (PTM)
    Power & PoE (NV-202PE)
    • Input Voltage: 36 ~ 57 V DC (Typical: 48V) (Commercial-grade desktop Power Adapter)
    • Output: 30 W max for each . (Pin Assignment:4/5(+),7/8(-))
    Power Requirement: Input Voltage
    • NV-202PE: 48VDC (Commercial-grade Power Adapter)
    • NV-202E: External Switching Power Adapter (Input: 85-240V AC, 50/60Hz Output: 12V/1A)
    EMC
    • EMI Compliant: FCC class B
    • EMS Compliant: CE mark class B
    Operating Temperature
    • 0°C ~ 50°C (32°F ~ 122°F)
    • Fanless, free air cooling
    Storage Temperature
    • -20°C ~ 70°C (-4°F ~158°F)
    Humidity
    • 10% to 90% (non-condensing)
    Mounting Method
    • Desktop or Under Counter
    Dimensions
    • NV-202E: 3.74" X 4.33" X 1.06” (95 mm X 110 mm X 27 mm)
    • NV-202PE: 5.39" X 3.94" X 1.06” (137 mm X 100 mm X 27 mm)
    Shipping Weight
    • 4 lbs. (1.81 Kg)
    Agency Compliance
    • FCC Part 15 Class A, CE
    • RoHS compliant
    Warranty
    • 2 years (parts only)
