10G Single Mode Fiber Media Converter Kit - Complete Fiber Solution for 20km Single Strand Links (NM-2100GSKIT)
$220.00 USD
NM-2100GSKIT
Overview
- Complete 10G Fiber Media Converter Kit: Includes two (2) NM-2100G 10G Media Converters and a matched 10G BiDi SFP+ pair for a complete point-to-point fiber link.
- Single Strand Fiber Extension: Extend Ethernet up to 20km (12.4 miles) over a single strand of single-mode fiber using matched BiDi SFP+ transceivers.
- Multi-Gig Copper Support: RJ-45 ports support 100M/1G/2.5G/5G/10GBase-T, making this kit suitable for both current and future network upgrades.
- 10G SFP+ Fiber Interface: The SFP+ slot supports 10GBase-X full-duplex operation with pre-installed 20km single-mode BiDi optics.
- Plug-and-Play Installation: Simply connect power, Ethernet, and fiber to establish a link.
Product Description
The Netsys 10G Single Strand Single Mode Fiber Media Converter Kit (NM-2100GSKIT) provides a complete solution for extending high-speed Ethernet over long-distance single-mode fiber. The kit includes two NM-2100G 10G media converters pre-populated with a matched pair of 10G BiDi SFP+ transceivers, allowing a point-to-point fiber link up to 20km (12.4 miles) over a single strand of single-mode fiber.
Each NM-2100G media converter provides one RJ-45 copper Ethernet port supporting 100M/1G/2.5G/5G/10GBase-T and one 10G SFP+ fiber slot. This makes the kit a strong upgrade path for customers moving beyond traditional Gigabit fiber conversion into modern multi-gig and 10G network environments.
The included BiDi SFP+ modules are installed as a matched pair using complementary transmit and receive wavelengths. This allows the kit to operate over one fiber strand while maintaining full-duplex 10G fiber connectivity between locations.
Features
- Complete kit with two NM-2100G 10G media converters and matched 20km BiDi SFP+ modules
- RJ-45 port supports 100M/1G/2.5G/5G/10GBase-T
- SFP+ slot supports 10GBase-X full-duplex operation
- Extends Ethernet up to 20km over single-mode fiber
- Single strand fiber operation using matched BiDi optics
- Supports jumbo frames up to 16K bytes
- Plug-and-play installation
- Compact design for easy deployment
- External power supply
Technical Specifications
- 2 × NM-2100G 10G Media Converters

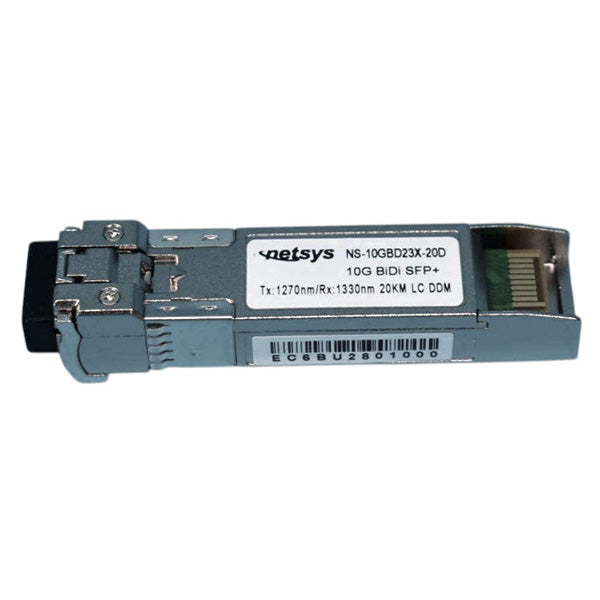

- 1 × NS-10GBD23X-20D 10G BiDi SFP+ Transceiver (Tx1270nm/Rx1330nm)
- 1 × NS-10GBD32X-20D 10G BiDi SFP+ Transceiver (Tx1330nm/Rx1270nm)
- 2 × AC to DC Power Adapters (12VDC/1A)
- Ethernet: 1 × RJ-45 port per converter
- Fiber: 1 × SFP+ slot per converter, pre-loaded with matched 10G BiDi SFP+ modules
- RJ-45 Data Rate: 100M/1G/2.5G/5G/10GBase-T
- SFP+ Data Rate: 10GBase-X full-duplex
- LEDs: RJ-45 10G, Link/Act; SFP+ Link/Act, SD; Power
- Max Distance: 20km (12.4 miles) over single-mode fiber
- Fiber Type: Single-Mode Fiber (SMF)
- Optical Interface: Single LC
- Optical Wavelengths: Tx1270nm/Rx1330nm and Tx1330nm/Rx1270nm
- Jumbo Frame Support: Up to 16K bytes
- Power Input: 5–12VDC / 1A
- Included Power Adapters: 12VDC / 1A
- Operating Temperature: 0°C to 50°C
- Humidity: 5% to 90%
- Dimensions: 134 × 82 × 27 mm (L × W × H)
