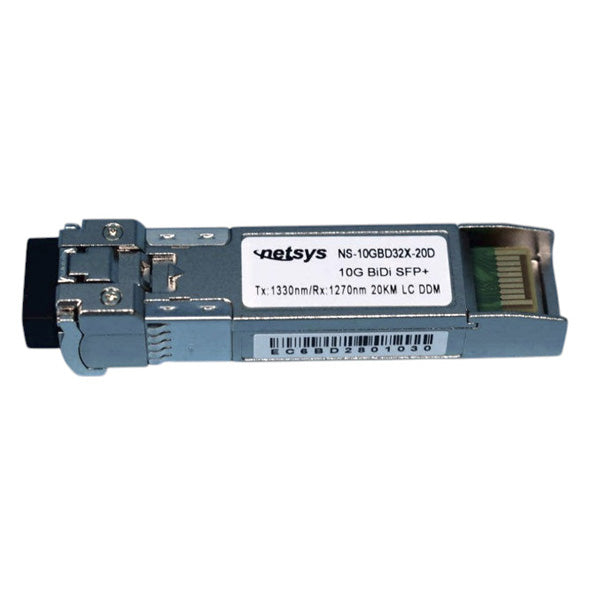

10G BiDi SFP+ Transceiver, 20km, Tx1330nm/Rx1270nm, Single LC, Single Mode Fiber - NS-10GBD32X-20D
$16.65 USD
NS-10GBD32X-20D
Description
The Netsys NS-10GBD32X-20D 10G BiDi SFP+ Transceiver supports data rates up to 10.3125Gbps over single-mode fiber (SMF) at distances up to 20km (12.4 miles). This hot-pluggable SFP+ module utilizes a 1330nm DFB laser transmitter with a 1270nm PIN receiver and features a single LC optical interface. Digital Diagnostic Monitoring (DDM/DDMI) support provides real-time monitoring of critical operating parameters.
Compatible Matched Pair Required: This transceiver must be paired with a NS-10GBD23X-20D transceiver at the opposite end of the fiber link. BiDi transceivers operate in matched pairs using complementary transmit and receive wavelengths.
Features
- Data rate up to 10.3125Gbps operation
- 1330nm DFB laser and 1270nm PIN receiver for transmission up to 20km (12.4 mi)
- Compliant with SFP+ MSA, SFP-8431, SFP-8432, and SFP-8472
- Compliant with IEEE 802.3ae 10 Gigabit Ethernet standard
- Single LC connector
- Digital Diagnostic Monitoring (DDM/DDMI) support
- Hot-pluggable SFP+ footprint
- Low power consumption (<1W)
- 3.3V power supply
Technical Specifications
| Model | NS-10GBD32X-20D |
| Form Factor | SFP+ |
| Data Rate | 10.3125Gbps |
| Fiber Type | Single-Mode Fiber (SMF) |
| Distance | 20km (12.4 mi) |
| Wavelength | Tx1330nm / Rx1270nm |
| Laser Type | DFB |
| Optical Interface | Single LC |
| DDM/DDMI | Yes |
| Operating Temperature | 0°C to 70°C |
| Power Consumption | <1W |
