VDSL2 GigaPort Ethernet Bridge Modem and Media Converter (320Mbps) - NV-320DP

NetsysSKU: NV-320DP

Sale price$165.00 Regular price$185.00

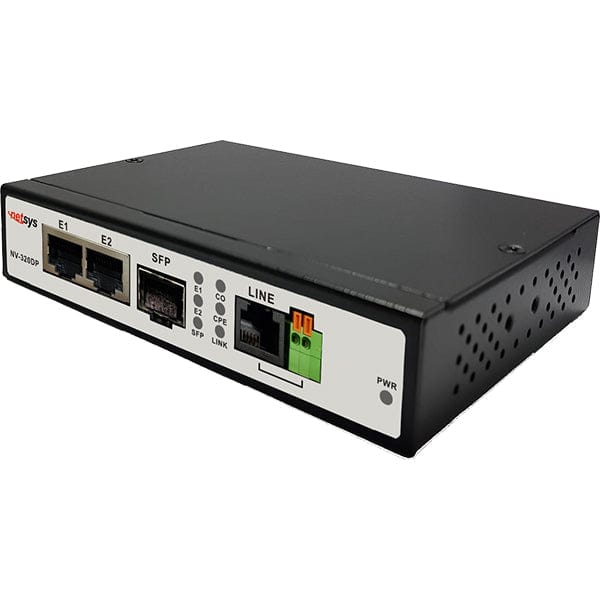

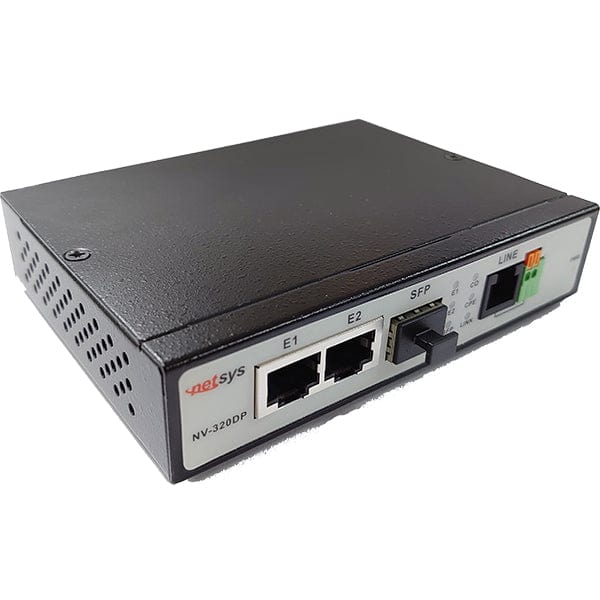

The Netsys VDSL2 GigaPort Ethernet Bridge Modem and Media Converter (NV-320DP) is an extremely flexible solution for extending Ethernet or Fiber internet/network connections over a single twisted pair of copper phone or network grade cable. The NV-320DP supports 10/100/1000 Base-T Ethernet, and 1.25G Base-X SFP designed specifically for FTTdp/FTTC applications, as well as symmetrical line speeds up to 160Mbps and distances up to 10,000 feet/3km at 2Mbps downstream/500Kbps upstream. The DIP switch panel on the rear of the NV-320DP allows users to select between CO/CPE mode, G.INP mode, and 8 VDSL2 band profiles.

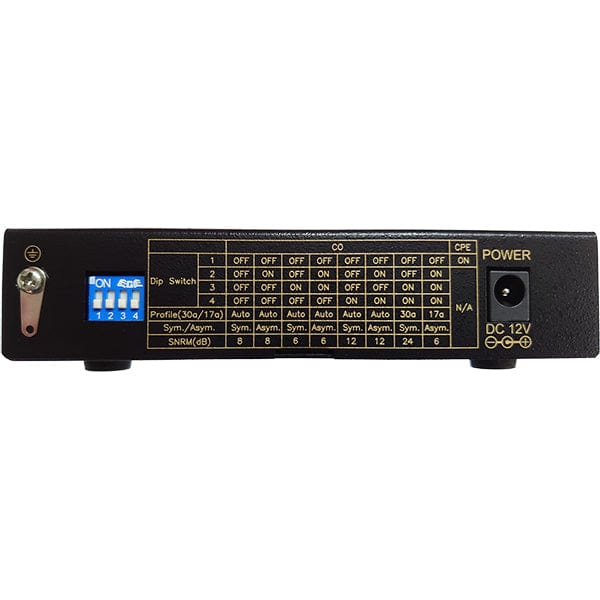

The VDSL2 GigaPort Ethernet Extender comes ready to plug and play out of the box for line speeds up to 160Mbps symmetrical, and distances up to 10,000 feet / 3 km at 2Mbps downstream and 500Kbps upstream. The bandwidth usage is automatically optimized to achieve the best speeds possible based on the surrounding environment with no configuration required with default settings, but also allows you to tailor configuration settings to best suit your application using the DIP switch panel on the rear of the device. (View DIP switch setting details here.)

The NV-320DP is a low cost, effective, and simple Copper/Fiber to xDSL solution for FTTdp/FTTC applications and is a perfect solution to extend your LAN to remote buildings, hotels, hospitals, or any location outside the reach of traditional network cable or fiber.


    • RJ-11/Terminal Block combo for Line Port
    • 2 X Auto-sensing 10/100/1000 Mbps Ethernet ports with Auto MDIX
    • 1 X 1.25G SFP Slot
    • Supports high bandwidth up to 160Mbps symmetrical
    • Supports long reach mode up to 10,000 feet (3km)
    • DIP switch selectable CO/CPE mode
    • DIP switch selectable G.INP mode
    • 8 X DIP switch selectable VDSL2 band profiles
    • Supports Jumbo frame (MTU) 2K bytes on VDSL side

Technical Specifications

Product Kit Contents
    • 1 X NV-320DP VDSL2 GigaPort Ethernet Beidge Modem
    • 1 X User Manual Download Hyperlink
    • 4 X Plastic Feet
    • 1 X AC to DC Power Adapter
    • 1 X Straight-through Ethernet Cables
    • 1 X RJ-11 Cables
Cable Connections
    • RJ-45 (Ethernet): Category 3~6 UTP/STP
    • RJ-11/Terminal Block (VDSL2): Twisted Pair phone or network grade cable
    • 1.25G SFP

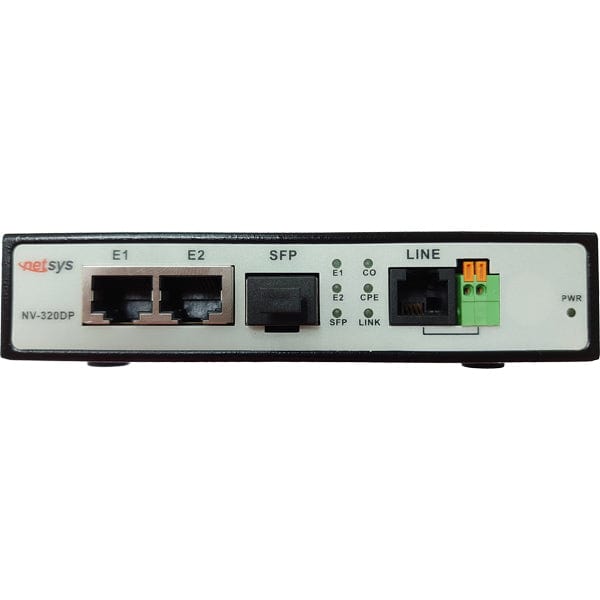

LED Indicators
    • 1 x Power LED
    • 2 x Link/Active Status for Ethernet port
    • 1 x Link/Active status for SFP Slot
    • 1 x Link LED for VDSL2 (Line) Port
    • 1 x CO Mode indicator LED
    • 1 x CPE Mode indicator LED
VDSL2 Line Code
    • Discrete multitone (DMT) modulation
Typical Power Consumption
    • 3 W
Power Requirement: Input Voltage
    • 12VDC / 1A (Commercial-grade Power Adapter)
    • EMI Compliant: FCC class A
    • EMS Compliant: CE mark
Operating Temperature
    • 32°F ~ 122°F(0°C ~ 50°C)
    • Fanless, free air cooling
Storage Temperature
    • -4°F ~158°F (20°C ~ 70°C)
    • 10% to 90% (non-condensing)
Mounting Method
    • Desktop or Under Counter
    • 3.74" X 4.33" X 1.06” (95 mm X 110 mm X 27 mm) (Each Unit)
Shipping Weight
    • 3 lbs. (1.361 Kg)
Power Requirements
    • External Switching Power Adapter
    • (Input: 100~240VAC, 50/60Hz Output: 12V/1A)
Agency Compliance
    • FCC Part 15 Class A, CE
    • RoHS compliant
    • 2 years (parts only)
