Managed Industrial Grade VDSL2 Ethernet Extender Kit (200Mbps) - NV-700IKIT

• Pre-Configured Industrial Managed Kit: Includes two (2) NV-700I units pre-configured in CO (Master) and CPE (Remote) modes for immediate plug-and-play operation.
• Industrial Solutions: For an unmanaged industrial solution without a management interface, we recommend the NV-520GKIT Industrial Gigabit Ethernet Extender Kit.

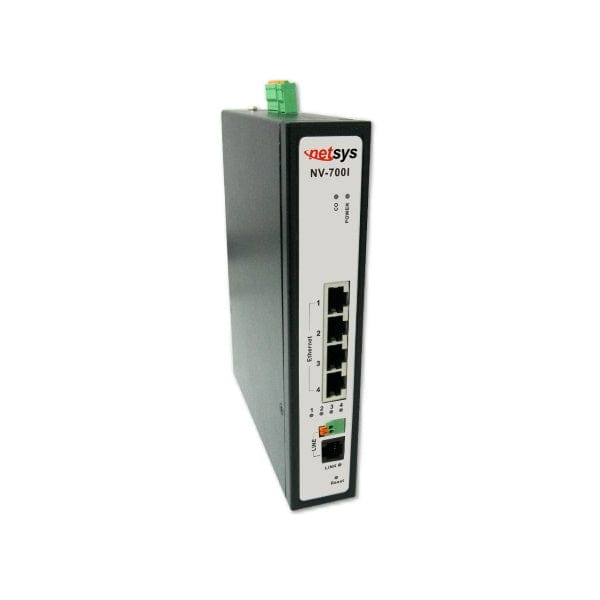

• Ruggedized for Harsh Environments: Features a durable metal enclosure with integrated DIN-rail mounting and a wide operating temperature range (-20°C to 70°C / -4°F to 158°F).
• High-Speed & Extended Reach: Delivers aggregate speeds up to 200Mbps (100Mbps symmetric) at distances up to 1,000 feet, with a maximum operating range of 10,826 feet (3.3km) over a single twisted pair.
• Cable Connections: Features an integrated RJ-11/Terminal Block line port for establishing the link over phone lines or network cable (Cat5, Cat6, or Cat7), plus four (4) 10/100Mbps Ethernet ports for connecting local network devices (IP cameras, APs, etc.).
• Advanced Management: Features a web-based interface for remote monitoring, IP address assignment, static routing (IPv4/IPv6), and eight selectable VDSL2 band profiles.
• Power Requirement Note: Designed to utilize an external 12 to 48VDC power source; AC power adapters are not provided with this kit.

The Netsys NV-700IKIT Managed Industrial VDSL2 Ethernet Extender Kit is a ruggedized solution for point-to-point applications requiring granular network control in demanding environments. Utilizing VDSL2 technology, the NV-700IKIT provides a stable ethernet bridge over existing copper infrastructure, offering a reliable and cost-effective alternative to fiber optic installations in factories, traffic control cabinets, and outdoor enclosures.

The NV-700IKIT includes everything needed to establish a high-speed link over a single twisted pair (2 wires) of network-grade cable (Cat5, Cat6, Cat7) or pre-existing phone lines. One NV-700I is pre-configured in CO mode for the central location, while the second unit is pre-configured in CPE mode for the remote endpoint. Each unit includes four 10/100Mbps Ethernet ports for connecting your network devices and features integrated surge protection. Please note that the NV-700IKIT is designed to utilize an external DC power source (12 to 48VDC) and does not include AC power adapters.

Unlike unmanaged industrial solutions, the NV-700IKIT provides a comprehensive web-based management tool. This allows administrators to monitor devices remotely, configure static routing, and choose from eight selectable VDSL2 modes to tailor the link to the specific environment. Housed in a durable chassis with integrated DIN-rail mounting, the NV-700IKIT is a premier choice for mission-critical network expansion in unconditioned spaces.

• ARM Cortex A9 dual-core processor
• Supports G.998.4 G.INP
• Supports up to 100 Mbps symmetric
• Supports 8 VDSL band profiles
• Supports IPv4/IPv6 NTP Client
• Supports static routing for IPv4 and IPv6 forwarding
• Mac Address based filtering
• Web-based management
• Supports IGMP snooping v2/v3
• Compliant with IEEE 802.3 & 802.3u Ethernet Standard
• Supports VLAN Tag pass through
• Compliant with ITU-T G993.2 VDSL2 standard
• Supports 8 queue MFC/DSCP both type QoS
• Supports HTTP/HTTPS web management
• Supports SSL / SSH security
• Supports remote management and monitor
• Supports configuration backup and restore
• On board surge protection for Line port
• Supports CO side bridge mode
• Supports Dual Firmware Image Backup
• Supports SNMP v1/v2
• Supports TR-069

Product Kit Contents

• 2 X NV-700I Industrial Grade Managed VDSL2 Modems (1 X CO, 1 X CPE)
• 1 X User Manual Download Link
• 2 X DIN-Rail mounting plates & Screws
• Protective caps (Console, RJ-11, RJ-45)
• 2 X 6-pin Terminal Blocks
• 2 X 2-pin Terminal Blocks

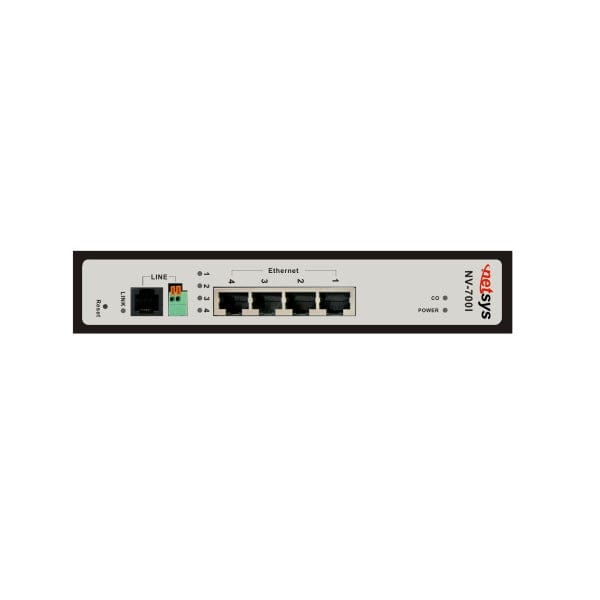

Cable Connections

• 4 x RJ-45 10/100Mbps auto-negotiation Ethernet port
• 1 x RJ-11 / Terminal combo for VDSL2 line port
• 1 x Reset Button for resetting to factory default

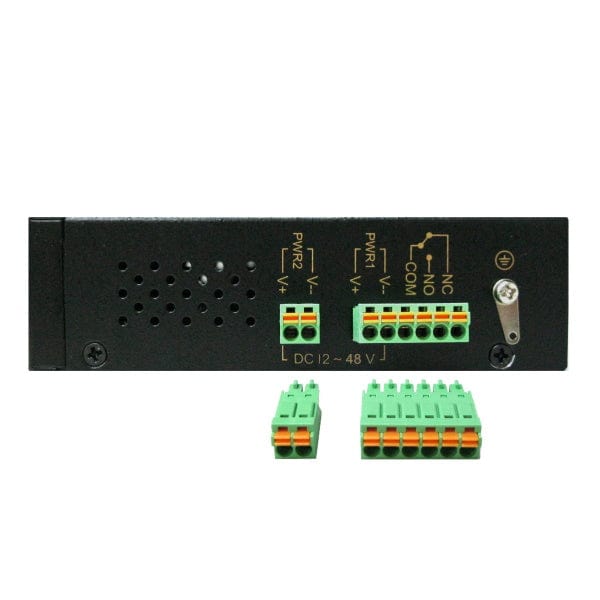

Terminal Blocks (Power)

• 2 X Removable 6-contact terminal block for Power1 and alarm contact
• 2 X Removable 2-contact terminal block for Power2

LED Indicators (each unit)

• 1 x Power LED
• 4 x Link/Active Status for Ethernet port
• 1 x Link LED for VDSL2 line port
• 1 X CO Mode LED

Power Requirements

• Input Voltage: 12 to 48VDC
• Input Current: 0.5~0.125A

Operating Temperature

• -20°C ~ 70°C (-4°F ~ 158°F)

Dimensions (each unit)

• 182mm x 142mm x 35.5mm (7.16" x 5.59 " x 1.39 ")

Warranty

• 2 years (parts only)
