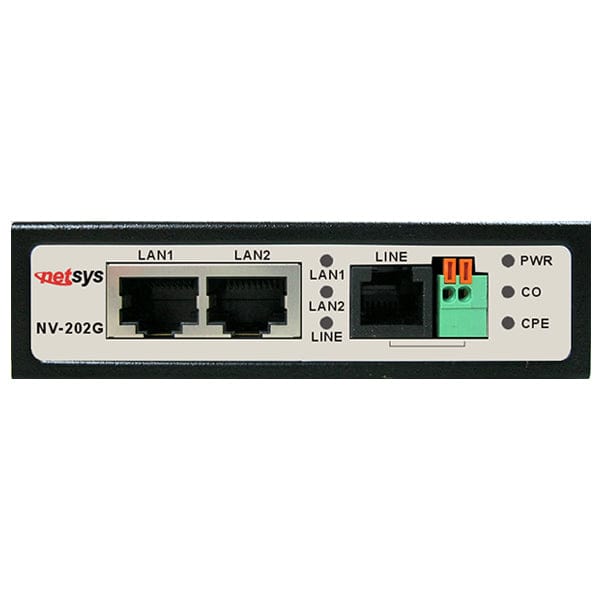

GigaPort VDSL2 Ethernet Bridge Modem (320Mbps) - NV-202G

NetsysSKU: NV-202G

Sale price$140.00 Regular price$155.00



The Netsys GigaPort VDSL2 Ethernet Bridge Modem (NV-202G) is the latest Netsys VDSL2 based CO/CPE configurable Bridge Modem, while still being backwards compatible with the NV-202. The NV-202G features 10/100/1000 Mbps Ethernet Ports to support Gigabit Ethernet, and symmetrical line speeds up to 160Mbps (320Mbps aggregate bandwidth), and long-range capability for distances up to 10,000 feet/3km at 5Mbps downstream/1Mbps upstream over a single twisted pair of copper phone or network grade cable.

The Netsys VDSL2 GigaPort Ethernet Bridge Modem (NV-202G) features dip switch configuration for CO/CPE mode AND 8 different VDSL2 band profiles (view VDSL2 band profiles and performance table here), including a G.INP mode for noisy environments. Designed to work in pairs for point-to-point applications, the NV-202G is compatible with existing Netsys VDSL2 devices like the NV-202 VDSL2 Ethernet Bridge Modem, NV-500I VDSL2 Industrial Bridge Modem and others.

The Netsys NV-202G is the preimier VDSL2 Ethernet Bridge Modem for use in Ethernet extension applications with distances up to 10,000 feet and aggregate bandwidth up to 320Mbps. The NV-202G is ideal for remote buildings, hotels, hospitals, campus or any locations outside the reach of traditional copper twisted-pair phone or network cable.


    • 2 X Auto-sensing 10/100/1000 Mbps Ethernet ports with Auto MDIX
    • RJ-11/Terminal Block combo for Line Port
    • Supports high bandwidth up to 160Mbps symmetrical
    • Supports long reach mode up to 10,000 feet (3km)
    • DIP switch selectable CO/CPE mode
    • DIP switch selectable G.INP mode
    • 8 X DIP switch selectable VDSL2 band profiles
    • Supports Jumbo frame (MTU) 2K bytes on VDSL side

Technical Specifications

Product Kit Contents
    • 1 X GigaPort VDSL2 Ethernet Bridge Modem
    • 1 X User Manual Download Hyperlink
    • 4 X Plastic Feet
    • 1 X AC to DC Power Adapter
    • 1 X Straight-through Ethernet Cables
    • 1 X RJ-11 Cables
Cable Connections
    • RJ-45 (Ethernet): Category 3~6 UTP/STP
    • RJ-11/Terminal Block (VDSL2): Twisted Pair phone or network grade cable
LED Indicators
    • 1 x Power LED
    • 2 x Link/Active Status for Ethernet port
    • 1 x Link/Active status for SFP Slot
    • 1 x Link LED for VDSL2 (Line) Port
    • 1 x CO Mode indicator LED
    • 1 x CPE Mode indicator LED
VDSL2 Line Code
    • Discrete multitone (DMT) modulation
Typical Power Consumption
    • 5 W
Power Requirement: Input Voltage
    • 12VDC / 1A (Commercial-grade Power Adapter)
    • EMI Compliant: FCC class A
    • EMS Compliant: CE mark
Operating Temperature
    • 32°F ~ 122°F(0°C ~ 50°C)
    • Fanless, free air cooling
Storage Temperature
    • -4°F ~158°F (20°C ~ 70°C)
    • 10% to 90% (non-condensing)
Mounting Method
    • Desktop or Under Counter
    • 3.74" X 4.33" X 1.06” (95 mm X 110 mm X 27 mm)
Shipping Weight
    • 2 lbs (1.361 Kg)
Power Requirements
    • External Switching Power Adapter
    • (Input: 100~240VAC, 50/60Hz Output: 12V/1A)
Agency Compliance
    • FCC Part 15 Class A, CE
    • RoHS compliant
    • 2 years (parts only)
