Description
Description

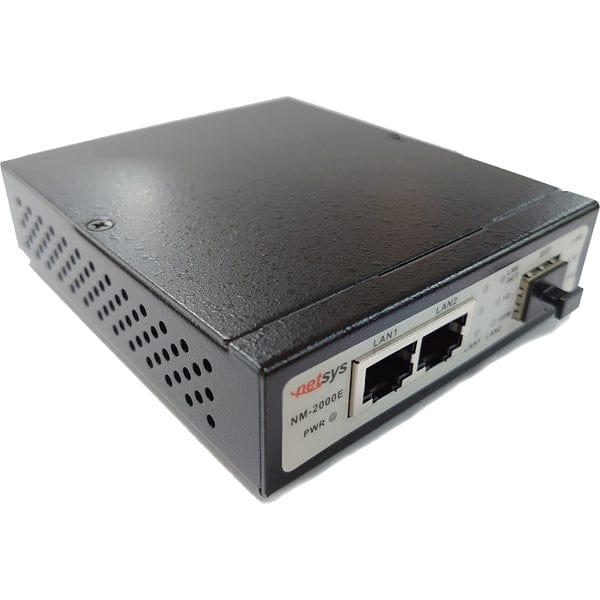

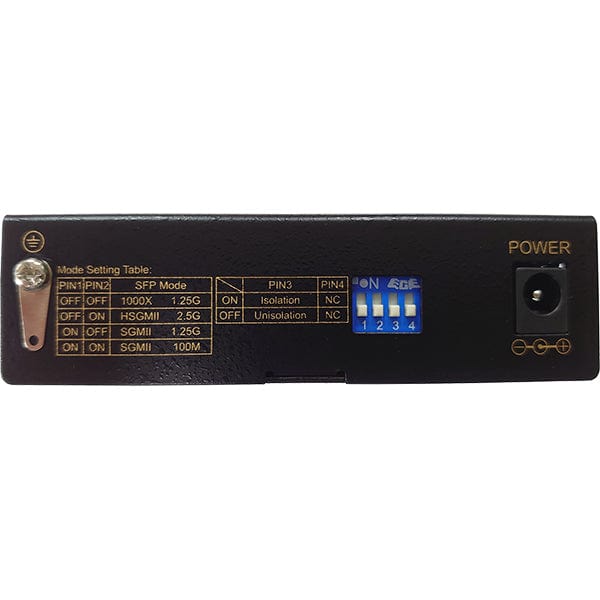

The GigaPort 100M/1.25G/2.5G Fiber Media Converter (NM-2000E) is a media converter that translates transmission signals from RJ-45 twisted-pair network cable (10/100/1000Base-T) to single mode or multimode fiber optic cable (1.25G/2.5G). The DIP switch panel on the rear of the device allows users to easily select between 1.25G/2.5G SFP modes, enable/disable Link Fault Passthrough (LFP), and isolation mode for the RJ-45 Ethernet LAN ports.
The NM-2000E GigaPort Fiber Media Converter supports conversion between 10/100/1000Base-T copper and 1000Base-LX / SX fiber networks, which are SC / SFP / WDM transceivers for single-mode or multi-mode media as required. The Netsys NM-2000E GigaPort Fiber Media Converter requires an SFP fiber optics, 1000Base-T copper, or xDSL module (one per unit, sold separately) to function.
With high performance data transmission and easy installation, the NM-2000E provides the ultimate ISP network solution for FTTH (Fiber to the Home), FTTC (Fiber to the Curb), or for ISPs for FTTB (Fiber to the Building), and can also be utilized for small office network environments.
Features
- 2 x RJ-45 10/100/1000Base-T Gigabit Ethernet Ports (isolation mode enabled/disabled via DIP switch)
- 1 X 100M/1.25/2.5G SFP Slot
- Supports IEEE 802.3 10Base-T, 802.3u 100Base-T and 802.3ab 1000Base-T Ethernet Standards
- Supports up to 9k Jumbo frames pass through
- Supports full or half-duplex mode by Auto-Negotiation
- Supports LFP(Link Fault Passthrough) function (enable/disable via DIP switch)
- DIP Switch selectable 100M/1.25G/2.5G SFP mode, and RJ-45 Ethernet LAN Port Isolation Mode
- EMI certified by CE, FCC
- RoHS compliant
Technical Specifications
Product Kit Contents- 1 X NM-2000E GigaPort Fiber Media Converter
- 1 X User Guide Download Hyperlink
- 1 X AC to DC Power Adapter
- IEEE802.3u/IEEE802.3ab, IEEE802.3z
- FCC
- CE
- RoHS Compliance
- Copper: 2 X 10/100/1000 Base-T RJ-45 (Auto-MDIX)
- SFP Slot: Fiber Optic or copper xDSL SFP modules
- 1 x Power LED
- 2 x Link/Active Status for Ethernet ports
- 2 x 1G Status for Ethernet ports
- 2 x 100M Status for Ethernet ports
- 1 x Link/Active for SFP
- 1 x 1.25G Status for SFP
- 1 x 2.5G Status for SFP
- Ethernet: 10/100/1000Base-T/Ethernet (Copper): 2-Pair UTP Cat 5 or above
- Fiber Optic: SFP Slot
- 9K Bytes
- Flexible (Depending on Fiber Transceiver)
- Input: AC 100-240 volts/ 50-60Hz
- Output: 125V/1A
- 3W
- 0°C~ 50°C (32°F ~ 122°F)
- -20°C ~ 70°C (-4°F ~ 158°F)
- 10 to 90% (non-condensing)
- 2 lbs
- 95 x 110 x 27 mm (3.75" x 4.33" x 1.06")
- 2 years
