1.25Gbps SFP BIDI, Simplex LC, 1550nm/1310nm, 20km, Single Mode - NS-GLC-BX20-D

1.25Gbps SFP BIDI, Simplex LC, 1550nm/1310nm, 20km, Single Mode - NS-GLC-BX20-D

Netsys

$26.50 $23.85 Online Sales Price

  • Product Details

Description

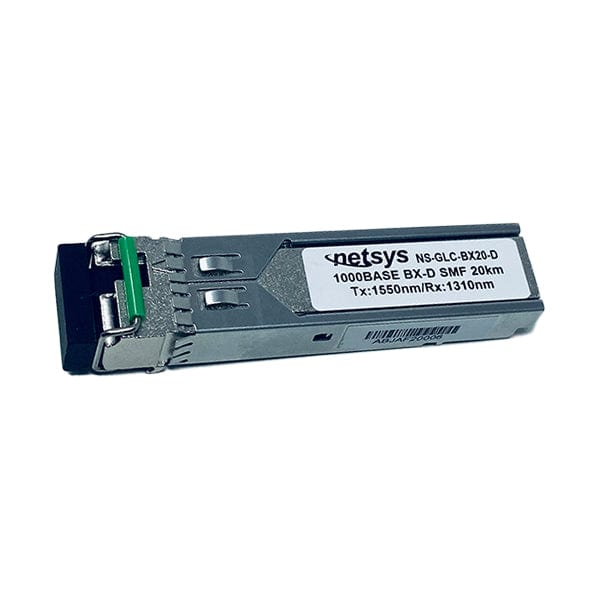

The Netsys NS-GLC-BX20-D 1.25Gbs SFP BIDI Transceiver provides fiber connectivity over a single strand of Single Mode fiber (Tx:1550/Rx:1310) at distances up to 65,000 feet (20km) with superior performance and cost-effectiveness.

Features

    • Small Form Factor Pluggable MSA compliant
    • Compliant with IEEE 802.3z Gigabit Ethernet standard
    • LC duplex connector
    • Low power consumption
    • 3.3V power supply
    • Differential LVPECL data input and output
    • LVTTL Loss of Signal
    • Serial ID through I²C Interface
    • Without digital diagnostic function
    • Class 1 Laser complies with IEC 60825-1
    • Flammability complies with UL 94V-0
    • 802.3z Gigabit Ethernet
