1.25Gbps SFP BIDI, Simplex LC, 1310nm/1550nm, 550m, Multimode - NS-GLC-BXM-U

1.25Gbps SFP BIDI, Simplex LC, 1310nm/1550nm, 550m, Multimode - NS-GLC-BXM-U

Netsys

$24.50 $22.05 Online Sales Price

  • Product Details

Description

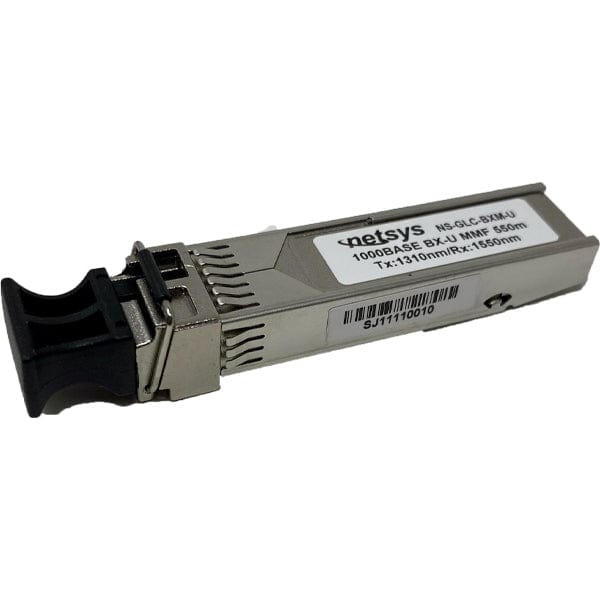

The Netsys NS-GLC-BXM-U 1.25Gbs SFP BIDI Transceiver provides fiber connectivity over a single strand of Multimode fiber (Tx:1310/Rx:1550) at distances up to 1,800 feet (550m) with superior performance and cost-effectiveness.

Features

    • Small Form Factor Pluggable MSA compliant
    • Compliant with IEEE 802.3z Gigabit Ethernet standard
    • LC duplex connector
    • Low power consumption
    • 3.3V power supply
    • Differential LVPECL data input and output
    • LVTTL Loss of Signal
    • Serial ID through I²C Interface
    • Without digital diagnostic function
    • Class 1 Laser complies with IEC 60825-1
    • Flammability complies with UL 94V-0
    • 802.3z Gigabit Ethernet
