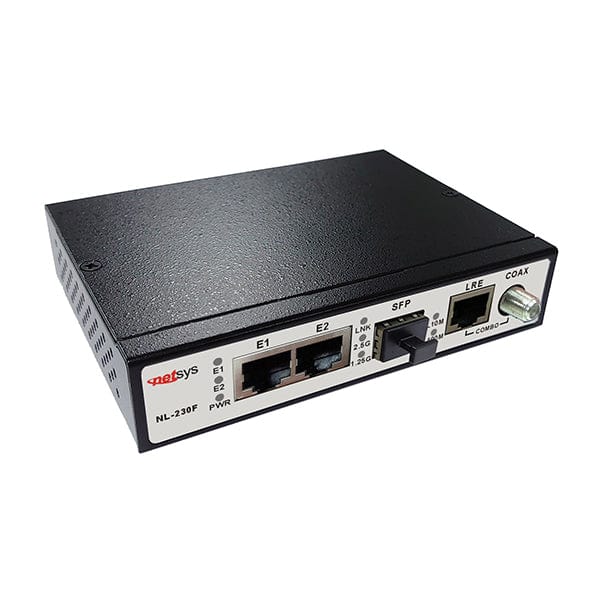

LRE Coax/UTP Extender and Media Converter Kit (200 Mbps) - NL-230FKIT

NetsysSKU: NL-230FKIT

Precio:
Precio de venta$155.00 Precio habitual$170.00

Descripción

DESCRIPTION

The Netsys Long Reach Ethernet Coax/UTP Extender and Media Converter Kit (NL-230FKIT) is a versatile, low-cost solution for extending Ethernet or Fiber SFP connections over coax or UTP network cable beyond Ethernet's natural distance limitation of 328 feet (100m). The NL-230FKIT provides 100Mbps symmetrical up to 1,640 feet (500m) over Cat5 (and above) network cable, with long reach capability up to 2,642 feet (800m) at 10Mbps. For added flexibility, Additionally, the NL-230FKIT allows the user to extend Ethernet over coaxial cable up to 1,640 feet (500m), with speeds of 100Mbps symmetrical up to 984 feet (300m). The NL-230F Long Reach Ethernet Extenders support 9K bytes jumbo frame pass-through, which is perfect to utilize for a multitude of applications including AI, IoT, VOIP, and video streaming.

The NL-230FKIT comes with two (2) NL-230F Long Reach Ethernet Extenders and everything you need to quickly and easily deploy one point-to-point, high-speed Ethernet link with no configuration required. The RJ-45/coax combo LRE port allows seamless integration of UTP cable, while allowing the option of using coax for applications where UTP cable is not available. Lastly, the built-in SFP Port can be used with any standard Fiber SFP Transceiver (not included) making the NL-230FKIT an outstanding low-cost solution for FTTdp/FTTC/FTTB network applications.

FEATURES

    • NO CONFIGURATION REQUIRED
    • RJ-45/Coax Combo LRE Port supports distances up to 2,642 feet (800m) for UTP cable and 1,640 feet (500M) over coax cable (depending on RG59/U cable quality)
    • 2 X Auto-sensing 10/100/1000 Mbps Ethernet ports with Auto MDIX
    • Compliant with IEEE802.3u/ab/z
    • Compliant with LD 10/100 mode via UTP
    • Compliant with 100Base-T1 mode via RG59/U
    • 1 X SFP slot supports 1.25G / 2.5G Fiber Optic Transceiver
    • Supports Jumbo frame (MTU) 9K bytes

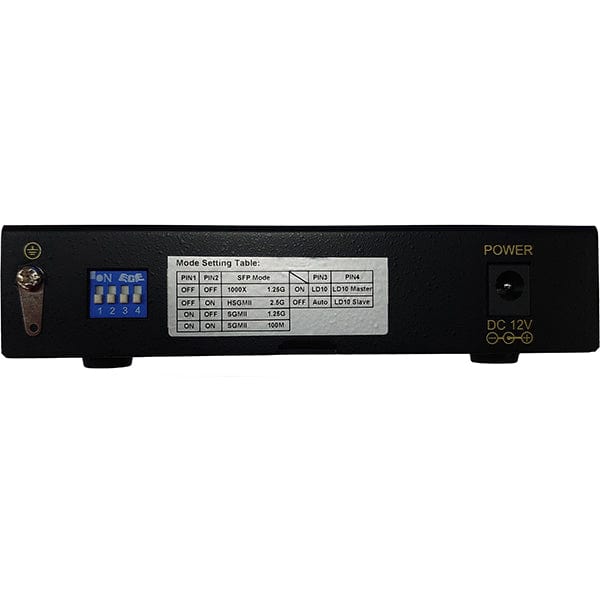

    • Supports DIP switch for selecting 1000X/SerDes 1.25G, HSGMII 2.5G, SGMII 1.25G, and SGMII 100M SFP slot mode
    • Built in surge protection for LRE port
    • Durable and compact in size metal case design

TECHNICAL SPECIFICATIONS

Product Kit Contents

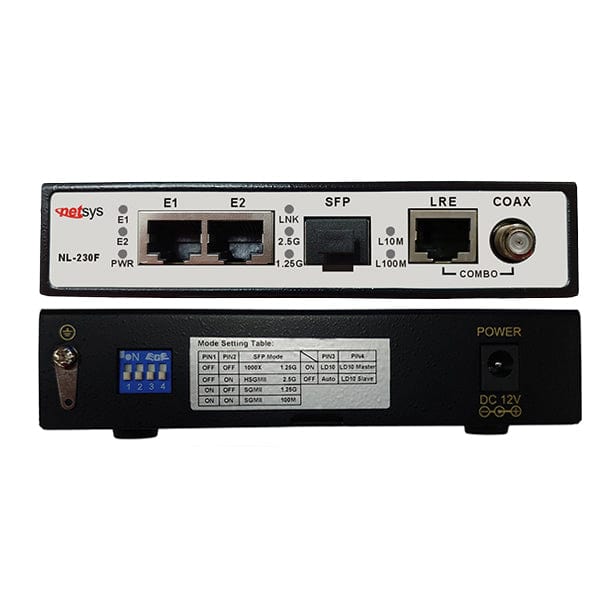

    • 2 X NL-230F Long Reach Ethernet Extenders
    • 1 X User Manual Download Hyperlink (via email)
    • 8 X Plastic Feet (attached)
    • 2 X AC to DC Power Adapters
    • 2 X Straight-through Ethernet Cables

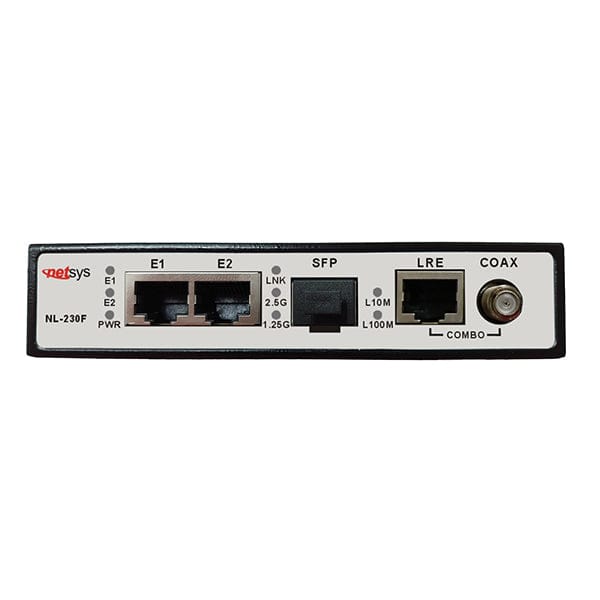

Interface (each NL-230F unit)

    • 2 X RJ-45 10/100/1000 Mbps auto-negotiation Ethernet ports
    • 1 X SFP slot for 1.25G/2.5G FIber Optic Transceiver
    • 1 x F-type conntector for coax cable
    • 1 X RJ-45 LRE Port
    • 1 X 4-PIN DIP Switch panel
    • 1 X DC power jack (power supplies are provided with NL-230FKIT)

Cable Requirements

    • Ethernet: 10/100/1000Base-T Cat5 or above UTP Cable
    • Coaxial: RG59/U
    • Fiber Optic: Flexible (Depending on Fiber Transceiver)

LED Indicators (each NL-230F unit)

    • 1 x Power LED
    • 2 x Link/Active Status for LAN ports
    • 1 x Link/Active status for SFP Slot
    • 1 x Link LED for LRE Port

SFP Modes

    • 1000X/SerDes, HSGMII 2.5G, SGMII 1.25G, SGMII 100M

Typical Power Consumption

    • 1.6 W

Power Input

    • Input Voltage: 12V DC
    • Input Current: 1A or above

Operating Temperature

    • 32°F ~ 122°F(0°C ~ 50°C)
    • Fanless, free air cooling

Storage Temperature

    • -4°F ~158°F (20°C ~ 70°C)

Humidity

    • 10% to 90% (non-condensing)

Mounting Method

    • Supports DIN-Rail/Wall Mounting/Bracket installation (mounting brackets sold separately)

Dimensions

    • 3.74" X 4.33" X 1.06” (95 mm X 110 mm X 27 mm) (Each Unit)

Shipping Weight

    • 3 lbs. (1.3 Kg)

Power Requirements

    • External Switching Power Adapter (provided with NL-230FKIT)
    • (Input: 100~240VAC, 50/60Hz Output: 12V/1A)

Agency Compliance

    • CE, FCC, RoHS compliant

Warranty

    • 2 years (parts only)
