GigaPort VDSL2 Ethernet Extender Kit (320Mbps) - NV-202GEKIT

• Plug-and-Play Kit: Includes 2 pre-configured units for a complete point-to-point link.
• Backwards Compatible: Modern replacement for legacy Netsys NV-202/NV-202EKIT.
• Flexible Copper Interconnect: Units connect via RJ-11 or Terminal Block over any single twisted pair (Cat5/6/7 or phone line).
• Gigabit Ethernet Ports: Features 10/100/1000 Mbps RJ-45 ports with up to 320Mbps aggregate line bandwidth.
• Proven Reliability: Reach up to 10,000 feet (3km) with DIP-selectable G.INP for noisy environments.

The Netsys GigaPort VDSL2 Ethernet Extender Kit (NV-202GEKIT) is a professional-grade solution for extending high-speed network connections beyond the 328-foot (100m) limit of standard Ethernet. The NV-202G bridge modems are fully backwards compatible with the legacy Netsys NV-202, making this kit the modern replacement for existing installations in buildings, hotels, hospitals, or campus environments. The pre-configured units establish a high-speed link with no configuration required.

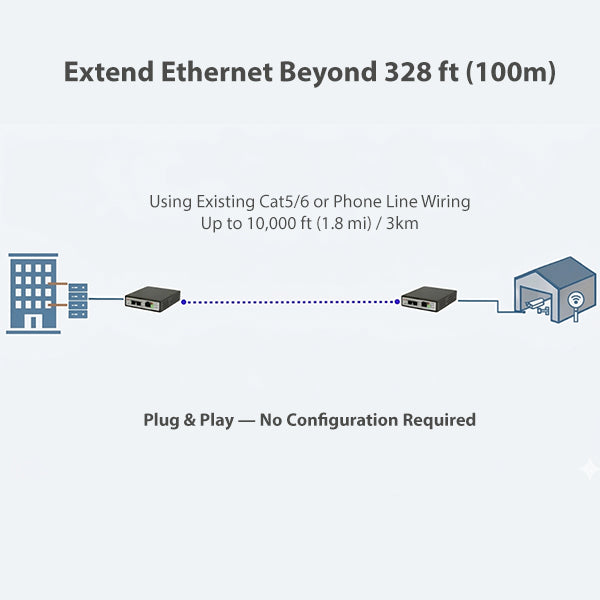

The NV-202GEKIT creates a point-to-point Ethernet bridge over any single twisted pair of copper—including Cat5, Cat6, Cat7, or legacy phone lines—using the integrated RJ-11 Line Port or 2-pin Terminal Block. It features 10/100/1000 Mbps Ethernet Ports to support Gigabit equipment and achieves symmetrical line speeds up to 160Mbps (320Mbps aggregate bandwidth). For challenging installations, the DIP-switch selectable G.INP mode and 8 different VDSL2 band profiles allow for maximized stability and performance in high-interference environments.

• 2 X Auto-sensing 10/100/1000 Mbps Ethernet ports with Auto MDIX
• NO CONFIGURATION REQUIRED
• RJ-11/Terminal Block combo for Line Port
• Supports high bandwidth up to 160Mbps symmetrical
• Supports long reach mode up to 10,000 feet (3km)
• DIP switch selectable CO/CPE mode
• DIP switch selectable SNRM Level
• DIP switch selectable G.INP mode
• 8 X DIP switch selectable VDSL2 band profiles
• Supports Jumbo frame (MTU) 2K bytes on VDSL side

• 2 X NV-202G GigaPort VDSL2 Ethernet Bridge Modems
• 1 X User Manual Download Hyperlink
• 8 X Plastic Feet
• 2 X AC to DC Power Adapter
• 2 X Straight-through Ethernet Cables
• 2 X RJ-11 Cables

• RJ-45 (Ethernet): Category 3~6 UTP/STP
• RJ-11/Terminal Block (VDSL2): Twisted Pair phone or network grade cable

• 1 x Power LED
• 2 x Link/Active Status for Ethernet port
• 1 x Link LED for VDSL2 (Line) Port
• 1 x CO Mode indicator LED
• 1 x CPE Mode indicator LED

• 5 W (each unit)

• 12VDC / 1A (Commercial-grade Power Adapter)

• EMI Compliant: FCC class A
• EMS Compliant: CE mark

• 32°F ~ 122°F(0°C ~ 50°C)

• -4°F ~158°F (20°C ~ 70°C)

• 10% to 90% (non-condensing)

• Desktop or Under Counter

• 3.74" X 4.33" X 1.06” (95 mm X 110 mm X 27 mm) (Each Unit)

• 3 lbs. (1.361 Kg)

• External Switching Power Adapter (Input: 100~240VAC, 50/60Hz Output: 12V/1A)

• FCC Part 15 Class A, CE, RoHS compliant

• 2 years (parts only)
