GigaPort 100M/1.25G/2.5G Fiber Media Converter - NM-2000E

• Versatile Fiber Conversion: Translates signals between 10/100/1000Base-T RJ-45 copper and SFP-based fiber optic or copper networks.
• Multi-Rate SFP Support: Features a selectable SFP slot supporting 100M, 1.25G, and 2.5G operation modes via a convenient rear DIP switch.
• Flexible SFP Compatibility: Designed to function with a wide array of SFP modules (sold separately), including single-mode, multi-mode, and copper 1000Base-T modules.
• Advanced Networking: Includes two (2) 10/100/1000Mbps RJ-45 Ethernet ports with auto-negotiation, auto-MDI/MDIX, and optional Port Isolation mode.
• Reliable Network Operation: Features Link Fault Passthrough (LFP) for link status monitoring and supports up to 9K jumbo frame passthrough for high-bandwidth traffic.
• Commercial Grade Design: Engineered for stable operation in environments ranging from 0°C to 50°C (32°F to 122°F) with a compact, easy-to-install footprint.

The NM-2000E GigaPort Fiber Media Converter is a high-performance networking tool designed to bridge the gap between copper-based Ethernet (10/100/1000Base-T) and SFP-based networks. By utilizing its selectable 100M/1.25G/2.5G SFP slot, the NM-2000E allows users to customize their network extension based on the specific SFP module installed, whether it be single-mode or multi-mode fiber.

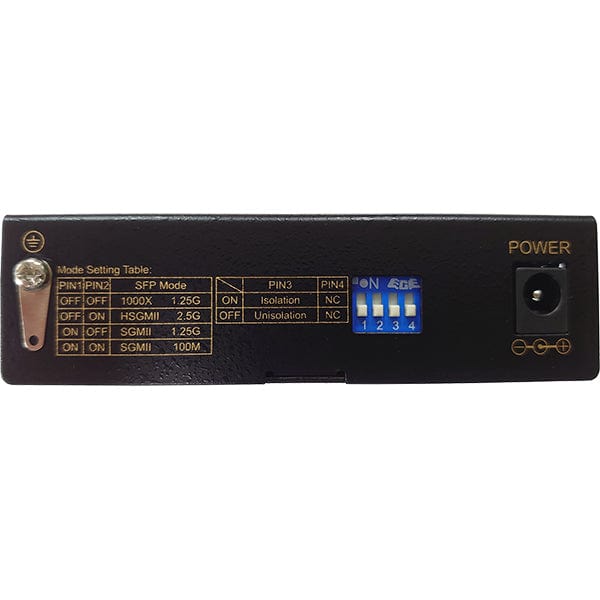

The unit features two 10/100/1000Mbps RJ-45 Ethernet ports with auto-MDI/MDIX, providing flexible connectivity for local network devices. The integrated DIP switch panel on the rear of the device provides simple hardware-level control, allowing users to select SFP speeds, enable/disable Link Fault Passthrough (LFP) for link integrity monitoring, and toggle Port Isolation mode for enhanced security between local LAN ports.

Whether utilized for Fiber to the Home (FTTH), Fiber to the Building (FTTB), or small office network expansion, the NM-2000E offers a reliable and scalable solution for high-bandwidth applications. Its compact design and commercial-grade operating temperature make it a versatile choice for a variety of installation environments with minimal setup required. Note: SFP modules are sold separately.

• 2 × 10/100/1000Mbps RJ-45 Ethernet ports (isolation mode selectable via DIP switch)
• 1 × Selectable SFP Slot (100M, 1.25G, and 2.5G modes)
• Compatible with Single-Mode, Multi-Mode, and Copper 1000Base-T SFP modules
• Supports IEEE 802.3 (10Base-T), 802.3u (100Base-T), and 802.3ab (1000Base-T) Ethernet Standards
• Supports up to 9K jumbo frame passthrough
• Full or half-duplex mode supported via Auto-Negotiation
• Link Fault Passthrough (LFP) function (DIP switch selectable)
• EMI certified by CE, FCC
• RoHS compliant

• 1 × NM-2000E GigaPort Fiber Media Converter
• 1 × AC to DC Power Adapter (12V/1A)
• 1 × User Guide Download Link

• Copper: 2 × 10/100/1000Mbps RJ-45 Ethernet ports (Auto-MDI/MDIX)
• SFP Slot: Supports Fiber Optic or 1000Base-T SFP modules
• LED Indicators: Power, SFP Link/Act, Ethernet Link/Act (x2), Speed indicators (1G/100M/2.5G)

• SFP Mode Support: 100M, 1.25G, 2.5G (DIP switch selectable)
• Jumbo Frame Support: Up to 9K bytes
• Typical Power Consumption: 3.5W

• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Dimensions: 95 x 110 x 27 mm (3.75" x 4.33" x 1.06")
• Shipping Weight: 2 lbs (0.91 kg)

• 2 Years (Parts Only)
