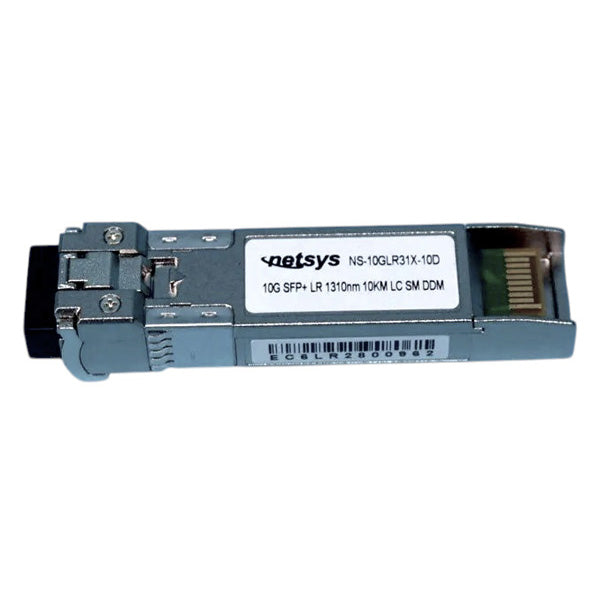

10G SFP+ LR Transceiver, 10km, 1310nm, Duplex LC, Single Mode Fiber - NS-10GLR31X-10D
$23.00 AUD
NS-10GLR31X-10D
In stock
Regular price
$23.00 AUD
Sale price
$23.00 AUD
Regular price
$26.00 AUD
Unit price
per
Shipping calculated at checkout.
Description
The Netsys NS-10GLR31X-10D 10G SFP+ LR Transceiver supports data rates up to 10.3125Gbps over single-mode fiber (SMF) at distances up to 10km (6.2 miles). This hot-pluggable SFP+ module utilizes a 1310nm DFB laser transmitter with a PIN receiver and features a duplex LC optical interface. Digital Diagnostic Monitoring (DDM/DDMI) support provides real-time monitoring of critical operating parameters.
Features
- Data rate up to 10.3125Gbps operation
- 1310nm DFB laser and PIN receiver for transmission up to 10km (6.2 mi)
- Compliant with SFP+ MSA, SFP-8431, SFP-8432, and SFP-8472
- Compliant with IEEE 802.3ae 10 Gigabit Ethernet standard
- Duplex LC connector
- Digital Diagnostic Monitoring (DDM/DDMI) support
- Hot-pluggable SFP+ footprint
- Low power consumption (<1W)
- 3.3V power supply
Technical Specifications
| Model | NS-10GLR31X-10D |
| Form Factor | SFP+ |
| Data Rate | 10.3125Gbps |
| Fiber Type | Single-Mode Fiber (SMF) |
| Distance | 10km (6.2 mi) |
| Wavelength | 1310nm |
| Laser Type | DFB |
| Optical Interface | Duplex LC |
| DDM/DDMI | Yes |
| Operating Temperature | 0°C to 70°C |
| Power Consumption | <1W |
